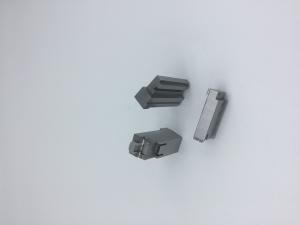

Precision Connector Mold Parts Finished by Surface Grinding and EDM
1. Product Application:
These connector mold parts were fabricated for molded pin connector and were designed for use in a high volume electronics application. It required precision as well as durability, and required features that would enhance the manufacturability of the finished parts. They are designed to allow for frequent change overs during production, while maintaining a high degree of precision.
2. Processing Equipment:
Parts are manufactured utilizing our precision surface grinding, and EDM machines which include Mitsubishi EDM, Sodick EDM, and Charmille EDM.
3. Testing Instruments:
CMM, Nikon Projector, Mitutoyo Digital Caliper, Mitutoyo Digital Height Gauge, Rockwell Hardness Inspection Instrument, etc
Connector Mold Parts Introduction
| Business Service |
OEM accepted |
| Processing Equipment |
CNC milling machines, wire cutting machines,
surface grinding machines, EDM machines, and more. |
| Application |
Auto mold |
| Measuring& testing |
Height Gauge, Hardness tester, dimensional detector, projector,
micrometer and so on. |
| Machining Basis |
Primary cusromer's drawings, 2D or 3D is ok |
| Surface Treatment |
according to our customers’ requirements |
| Tolerance |
Accuracy of grinding: 0.001 mm;
Accuracy of EDM: 0.002 mm;
Accuracy of Wire-cutting: 0.002mm;
Accuracy of CNC: 0.002mm
In short, the requirment of tolerance as customer's demand. |
| OEM ODM Service |
Yes |
| Quality Assurance |
1. Incoming material control to make sure all the raw materials are qualified.
2. Operators follow the daily check list to check the machines to make sure they are in good conditions, and follow the spec to make products.
3. Use qualified operators and correct parameters to make sure good quality.
4. According to the quality assurance procedure to check the quality.
5. Full quality check after product before shipping. |
Testing Device
Height Measuring Instrument
Brand: Nikon
Model No.:MF-501
Accuracy: ±0.001m
Quantity: 5 sets
High Definition Tool Microscope
Brand: Nikon
Model: MM-400
Accuracy: ±0.001mm
Quantity: 2 sets
Projector
Brand: Nikon
Model No.: V-12B
Accuracy: ±0.001mm
Quantity: 2 sets
About Us
GuanYao mould was established in 2000, found with the goal of providing high quality, precision moulds.
Over years growth, the factory covers 3000sq meters, and has more than 80 staffs, including 10 designers and engineers now. We believe that we will find ourselves at the leading edge when it comes to high tech, high accuracy tool production. All the moulds produced by GuanYao were widely exported to Europe, North America, Australia, New Zealand, Asia, etc.
Our priority is building the finest quality molds available with the most effective cost and delivering them on time. We have earned and maintained an excellent reputation as a quality builder of plastic injection molds.
Our tools offer the following benefits:
● Deliver high reliability with an emphasis on efficient cycle times, increasing your productivity.
● Maintain part-to-part consistency.
● Save your time and money by reducing downtime and maintenance costs.
● Maximize tool life assuring your investment will pay dividends for many years.
